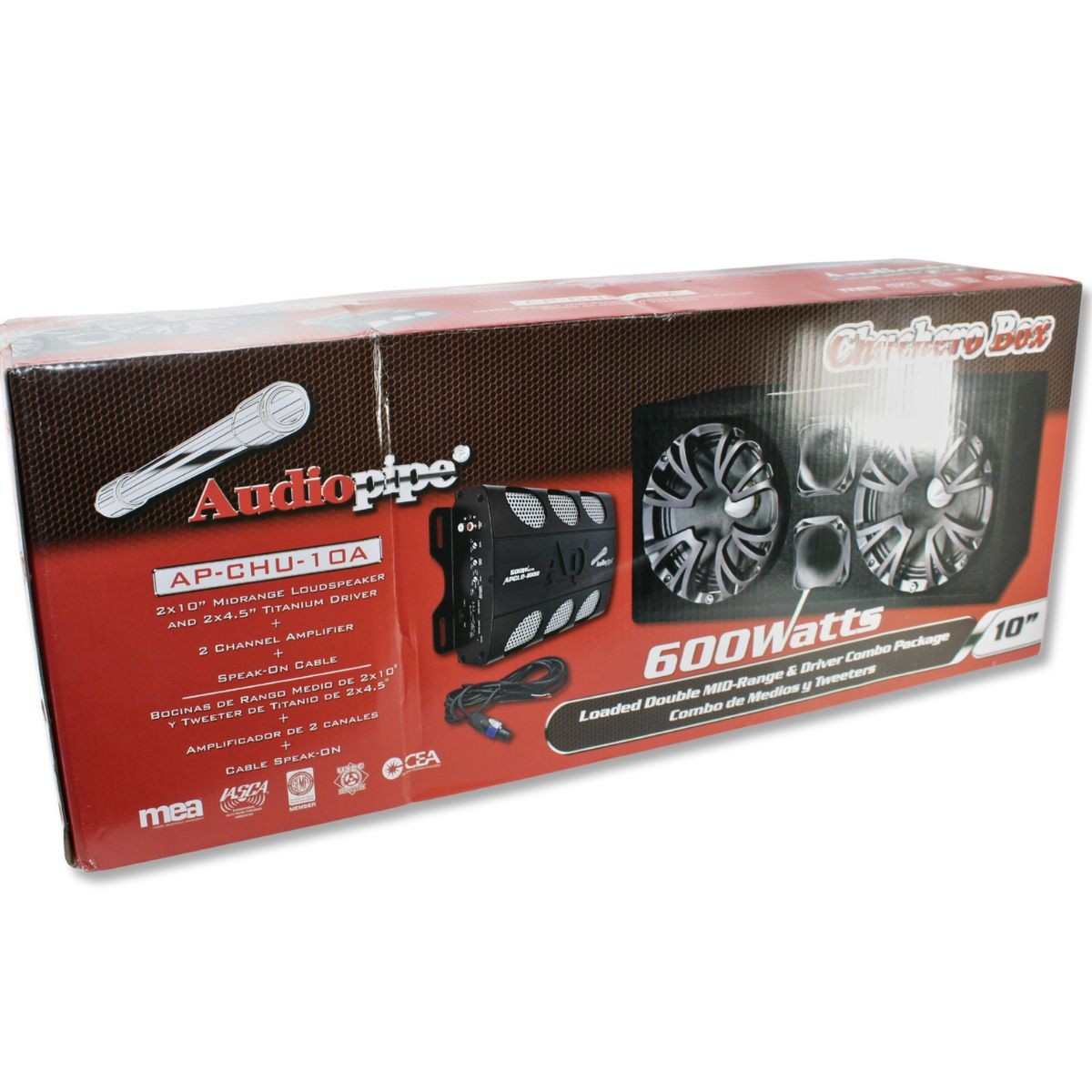

Audiopipe Loaded 10" 2x Mid-Range + 2x Driver Combo with 500W 2-Channel

Audiopipe Loaded 10" 2x Mid-Range + 2x Driver Combo with 500W 2-Channel Amplifier

This Listing Includes:

• (1) AudioPipe APCLE-1002 2-Ch Amplifier


• (1) AudioPipe AP-CHULD-102 10" Loaded Chuchero Box


• (1) XSPK-214-BL12 Speaker Cable

Loud, clear, and built to perform.

The Loaded Double Mid-Range & Driver Combo Package (AP-CHU-10A) delivers powerful midrange projection and crisp high-frequency output in a compact, road-ready design. Centered around a 10-inch chuchero box, this system is ideal for car audio builds that demand strong vocals, sharp clarity, and easy installation.

The enclosure is constructed from high-quality MDF and wrapped in durable high-density carpet, offering both strength and style while resisting vibration and wear. Inside, dual 10-inch mid-range bullet speakers and dual 4.5-inch titanium drivers combine to produce loud, focused sound that cuts cleanly through bass-heavy systems.

Powering the system is an included 2-channel amplifier with built-in variable high-pass and low-pass crossovers, allowing precise tuning for mids and highs. Electronic protection circuitry helps safeguard against short circuits, DC offset, and thermal overload. A 12-foot 4-wire SpeakON cable completes the package, making installation fast and secure.

If you’re looking for a compact yet aggressive midrange solution, this combo is engineered to bring clarity, projection, and presence to your system.

Features

• 10-inch chuchero style loaded enclosure


• High-quality MDF construction


• Covered in durable high-density carpet


• Dual 10-inch mid-range bullet speakers


• Dual 4.5-inch titanium compression drivers


• 2-inch KSV voice coils for improved power handling


• 28 oz strontium magnets for strong motor performance


• Dual 8 ohm speaker configuration


• 600 watts maximum power handling


• Includes 2-channel power amplifier


• Built-in variable high-pass and low-pass crossovers


• Electronic protection circuitry


• SpeakON cable included for secure connections

Specifications

• Speaker Size: 2 x 10-inch mid-range bullet speakers


• High-Frequency Drivers: 2 x 4.5 inch titanium drivers


• Speaker Impedance: Dual 8 ohm


• Voice Coil Size: 2-inch KSV


• Magnet Size: 28 oz strontium


• Power Handling: 600 watts max


• Impedance: Dual 8 ohm


• Enclosure Material: MDF


• Enclosure Finish: High-density carpet


• Maximum Power Output: 500 watts


• Amplifier Power @ 4 Ohm: 50 watts x 2


• Amplifier Power @ 2 Ohm: 100 watts x 2


• Bridged Power @ 4 Ohm: 200 watts x 1


• Frequency Response: 20Hz - 20kHz


• Input Sensitivity: 0.25V - 2.5V


• Crossover Range: 55Hz - 5.5kHz

Amplifier Specifications:

• Amplifier Type: 2-channel


• Crossover Controls: Variable high-pass and low-pass


• Inputs: RCA line input and output


• Protection: Short circuit, DC offset, thermal overload


• Amplifier Dimensions (Metric): 55 mm H x 176 mm W x 224 mm

Dimensions (Chuchero Enclosure):

• Length: 28"


• Width: 6.5"


• Height: 12.2"

Dimensions (Amplifier):

• Height: 2.2"


• Width: 7"


• Length: 8.8"
